Fuses protect the tractor’s electrical system from potential damage. A blown fuse indicates that there is an overload or a short somewhere in the electrical system. If a fuse blows, replace it with a new fuse of the same capacity.
All fuses in the Monarch Tractor are replaceable by hand, without additional tools.
Before replacing a blown fuse, it’s important to determine what caused the fuse to blow, and then to make necessary repairs.
IMPORTANT: To avoid serious damage to the tractor and to the tractor’s electrical system, determine the cause of a blown fuse before replacing it.

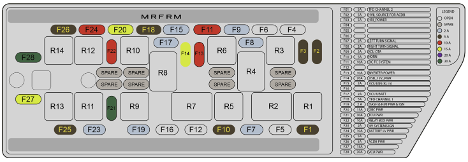

Fuse Diagrams
|
Location |
Amps |
Protected Circuit |
|
F1 |
5A |
ISO Bus+ TBC Power |
|
F2 |
5A |
HVIL source for ACDB |
|
F3 |
5A |
HRI power |
|
F4 |
Empty |
N/A |
|
F5 |
10A |
7-Pin connector |
|
F6 |
20A |
USB power |
|
F7 |
2A |
Left turn signal |
|
F8 |
2A |
Right turn signal |
|
F9 |
2A |
MTA Dash and HMI power |
|
F10 |
15A |
Coolant pump |
|
F11 |
15A |
DCFC controller power |
|
F12 |
5A |
Lorde TFD 2 |
|
F13 |
10A |
Gen559 power |
|
F14 |
5A |
Lorde TFD 1 |
|
F15 |
2A |
TTC580 IGN (KL15) |
|
F16 |
Empty |
N/A |
|
F17 |
2A |
TTC580 uBATT |
|
F18 |
Empty |
N/A |
|
F19 |
2A |
OTA TTC580 Relay |
|
F20 |
7.5A |
DCDF Contactors |
|
F21 |
30A |
Ecotrons shift power |
|
F22 |
10A |
mRFRM power |
|
F23 |
2A |
HV systems IGN |
|
F24 |
10A |
TTC32 & BMS power |
|
F25 |
15A |
Front sensor |
|
F26 |
5A |
ACDB power |
|
F27 |
15A |
VMAX power |
|
F28 |
30A |
TTC580 power |
|

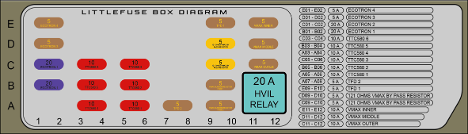

Location |
Amps |
Protected Circuit |
|
E01 – E02 |
5A |
ECOTRON 4 |
|
D01 – D02 |
5A |
ECOTRON 3 |
|
C01 – C02 |
20A |
ECOTRON 2 |
|
B01 – B02 |
20A |
ECOTRON 1 |
|
C03 – C04 |
10A |
TTC580 6 |
|
B03 – B04 |
10A |
TTC580 5 |
|
A03 – A04 |
10A |
TTC580 4 |
|
C05 – C06 |
10A |
TTC580 3 |
|
B05 – B06 |
10A |
TTC580 2 |
|
A05 – A06 |
10A |
TTC580 1 |
|
A07 – A08 |
5A |
TFD 2 |
|
E09 – E10 |
5A |
TFD 1 |
|
D09 – D10 |
5A |
121 OHMS VMAX bypass resistor |
|
C09 – C10 |
5A |
121 OHMS VMAX bypass resistor |
|
E11 – E12 |
10A |
VMAX inner |
|
D11 – D12 |
10A |
VMAX middle |
|
C11 – C12 |
10A |
VMAX outer |
|
Location |
Amps |
Protected Circuit |
|
F1 |
5A |
ISO Bus+ TBC Power |
|
F2 |
5A |
HVIL source for ACDB |
|
F3 |
5A |
HRI power |
|
F4 |
Empty |
N/A |
|
F5 |
Empty |
N/A |
|
F6 |
Empty |
N/A |
|
F7 |
2A |
Left turn signal |
|
F8 |
2A |
Right turn signal |
|
F9 |
2A |
VCU OTA |
|
F10 |
5A |
Horn |
|
F11 |
10A |
DC FC system |
|
F12 |
Empty |
N/A |
|
F13 |
10A |
Inverter power |
|
F14 |
20A |
USB 12V power |
|
F15 |
2A |
VCU ign |
|
F16 |
Empty |
N/A |
|
F17 |
2A |
VCU U Batt |
|
F18 |
5A |
TFD channel 1 |
|
F19 |
2A |
Dash and HMI power and ignition |
|
F20 |
15A |
OBC power |
|
F21 |
30A |
TCU power |
|
F22 |
10A |
Relay box power |
|
F23 |
2V |
HV systems |
|
F24 |
10A |
Battery LV power |
|
F25 |
Empty |
N/A |
|
F26 |
5A |
ACBD power |
|
F27 |
Empty |
N/A |
|
F28 |
30A |
VCU power |
