Tractor Safety Labels and Decals
Follow instructions on all Monarch Tractor decals. If any decal is damaged (peeling or has been defaced), replace any damaged decals and make sure they’re placed in the correct location. Replacement decals are available from Monarch Tractor or your Monarch Tractor dealer. The part numbers are listed at the end of this article.
IMPORTANT: Ensure that safety labels are affixed to the tractor in the locations depicted below.

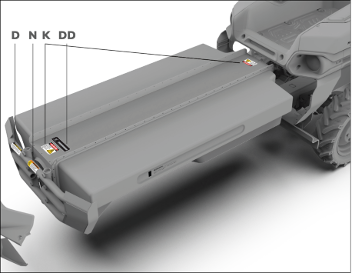

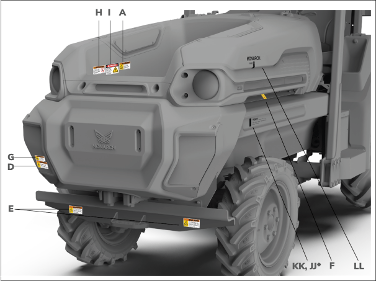

| Front of MK-V |  |

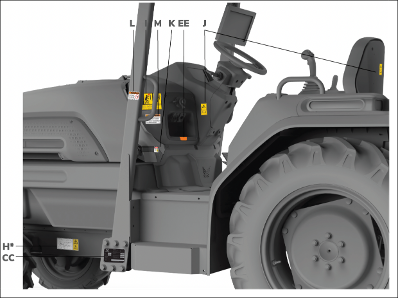

| Left Side |  |
| Battery |  |
| Fuse Tray |  |
| Back |  |
| Fenders |  |
| Floor/Dash |  |
| Roof |  |
Replacement Decal Part Numbers
|
ID |
Decal |
Description |
Part Number |
|
A |
 |
Do not exceed max load capacity of 220 pounds (Note: Weight limit applies to tool tray.) |
M0135 |
|
B |
 |
Do not step, stand, or sit on this surface |
M0140 |
|
C |
 |
Do not drill |
M0148 |
|
D |
 |
Do not use as a bumper |
M0158 |
|
E |
 |
Only tie down or use center brackets for leverage |
M0149 |
|
F |
 |
Keep hands out of fan |
M00020389 |
|
G |
 |
Pinch point warning |
M00023033 |
|
H |
 |
Monarch jacking points |
M0159 |
|
I |
 |
Always use grabrail |
M00020388 |
|
J |
 |
Read Operator Manual |
M00020382 |
|
K |
 |
High Voltage Danger
|
M0139 |
|
L |
 |
Do not Power Wash Warning |
M0142 |
|
M |
 |
CA Proposition 65 Warning |
M0141 |
|
N |
 |
Do NOT use to push, pull, or lift |
M0157 |
|
O |
 |
Do not use as step warning |
M00020380 |
|
P |
 |
Do not stand between tractor and implement |
M00020381 |
|
Q |
 |
Do not exceed maximum lift capacity of 1650 lbs |
M0144 |
|
R |
 |
Do not exceed maximum lift capacity of 1650 lbs to avoid hydraulic fluid burns
|
M0137 |
|
S |
 |
Do not exceed maximum lift capacity caution |
M0138 |
|
T |
 |
Turn off 12V battery before service; refer to Operator Guide |
M0155 |
|
U |
 |
PTO Switch Stop |
M0156 |
|
V |
 |
Emergency Stop LH |
M0146 |
|
W |
 |
Emergency Stop RH |
M0147 |
|
X |
 |
PPE reminder |
M00020387 |
|
Y |
 |
3-Point Joystick |
M0145 |
|
Z |
 |
Always use grabrail |
M00020388 |
|
AA |
 |
Avoid tipping |
M00020385 |
|
BB |
 |
Always wear seatbelt for full ROPS protection |
M00020386 |
|
CC |
 |
Monarch Tractor Product ID Plate |
M00021034 |
|
DD |
 |
Monarch Tractor Battery ID Plate |
B0276 |
|
EE |
 |
5V and 12V |
D0126 |
|
FF |
 |
220VAC and 110VAC |
D0128 |
|
GG |
 |
Charging Port J1772 |
D0127 |
|
HH |
 |
Monarch Tractor Roof RH |
R0186 |
|
II |
 |
Monarch Tractor Roof LH |
R0187 |
|
JJ |
 |
Monarch Tractor Battery LH |
M00022836 |
|
KK |
 |
Monarch Tractor Battery RH |
M00022837 |
|
LL |
 |
Monarch MK-V Model Designator LH |
D0124 |
|
MM |
 |
Monarch MK-V Model Designator RH |
D0123 |
