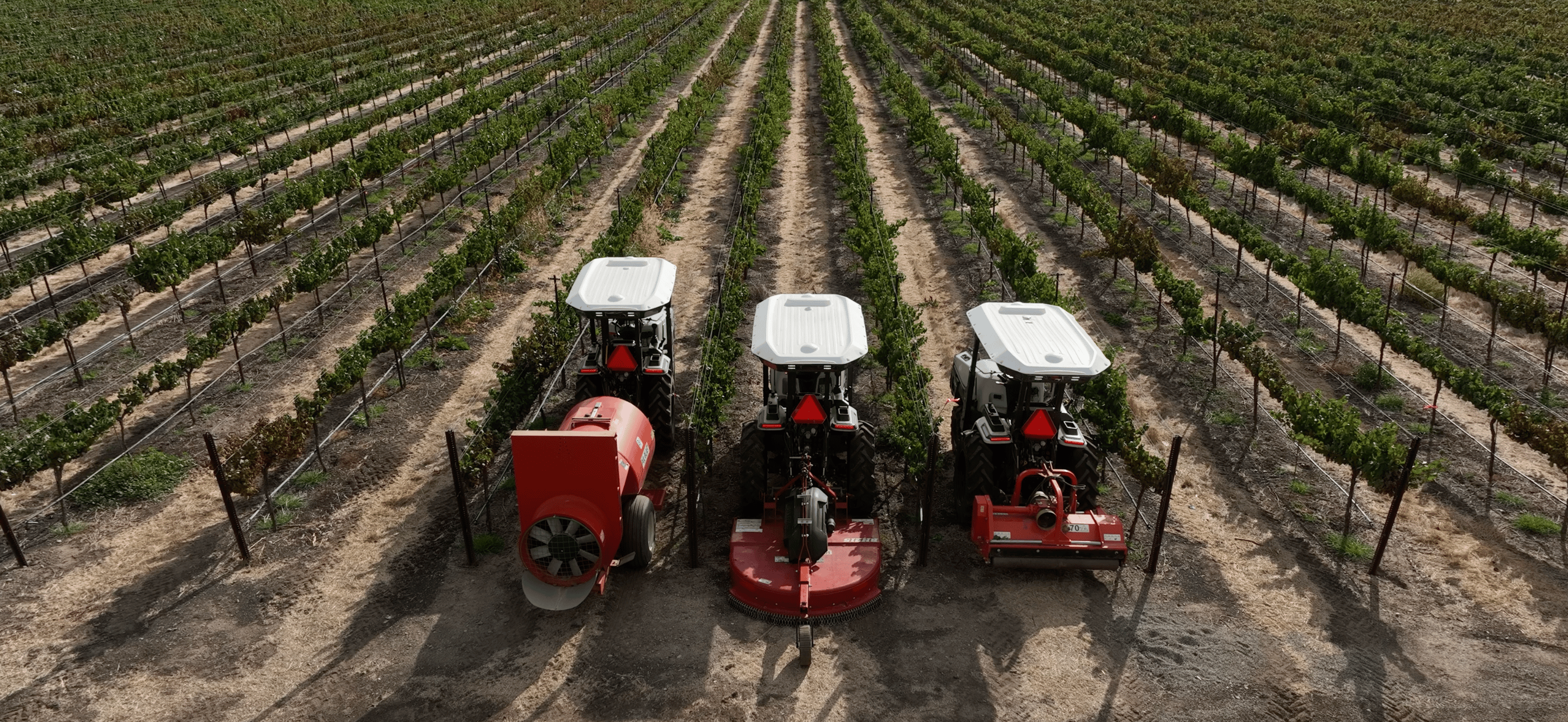

Monarch MK-V Compatible Implement Specs

In general, Implements that meet the specifications below should work with the MK-V tractor. However, it is dependent on the specific implement make model, environment and operating conditions.

Implement Type Specification
Trailer Drawbar
Max Trailer Load 5,500 lbs (2,500 kg)
Max Drawbar Vertical Load 1,100 lbs (500 kg)
Mower Rotary
Max Cutting Width 84 in (1830 mm)
Max Weight 1,650 lbs (750 kg)
Max PTO HP 40 HP (30 KW)
Flail
Max Cutting Width 72 in (1830 mm)
Max Weight 1,650 lbs (750 kg)
Max PTO HP 40 HP (30 KW)
Sprayer Rear 3PT
Max Tank Capacity 150 gal (575 L)
Max PTO HP 40 HP (30 KW)
Drawbar
Max Tank Capacity 300 gal (1135 L)
Max PTO HP 40 HP (30 KW)
Disk Harrow Rear 3PT
Max Width 72 in (1830 mm)
Max Weight 1,650 lbs (750 kg)
Rotary Tiller Rear 3PT
Max Tilling Width 72 in (1830 mm)
Max Weight 1,650 lbs (750 kg)
Max PTO HP 40 HP (30 KW)
Cultivator Rear 3PT
Max Width 48 in (1220 mm)
Max Weight 1,650 lbs (750 kg)
Undervine Weeders Rear 3PT
Max Hydraulic Flow 12.0 gpm (45 l/min)
Max Weight 1,650 lbs (750 kg)
Max PTO HP 40 HP (30 KW)
Manure or Compost Spreader Drawbar
Max Hydraulic Flow 12.0 gpm (45 l/min)
Max PTO HP 40 HP (30 KW)
Max Trailer Load 5,500 lbs (2,500 kg)
Max Drawbar Vertical Load 1,100 lbs (500 kg)
